Description

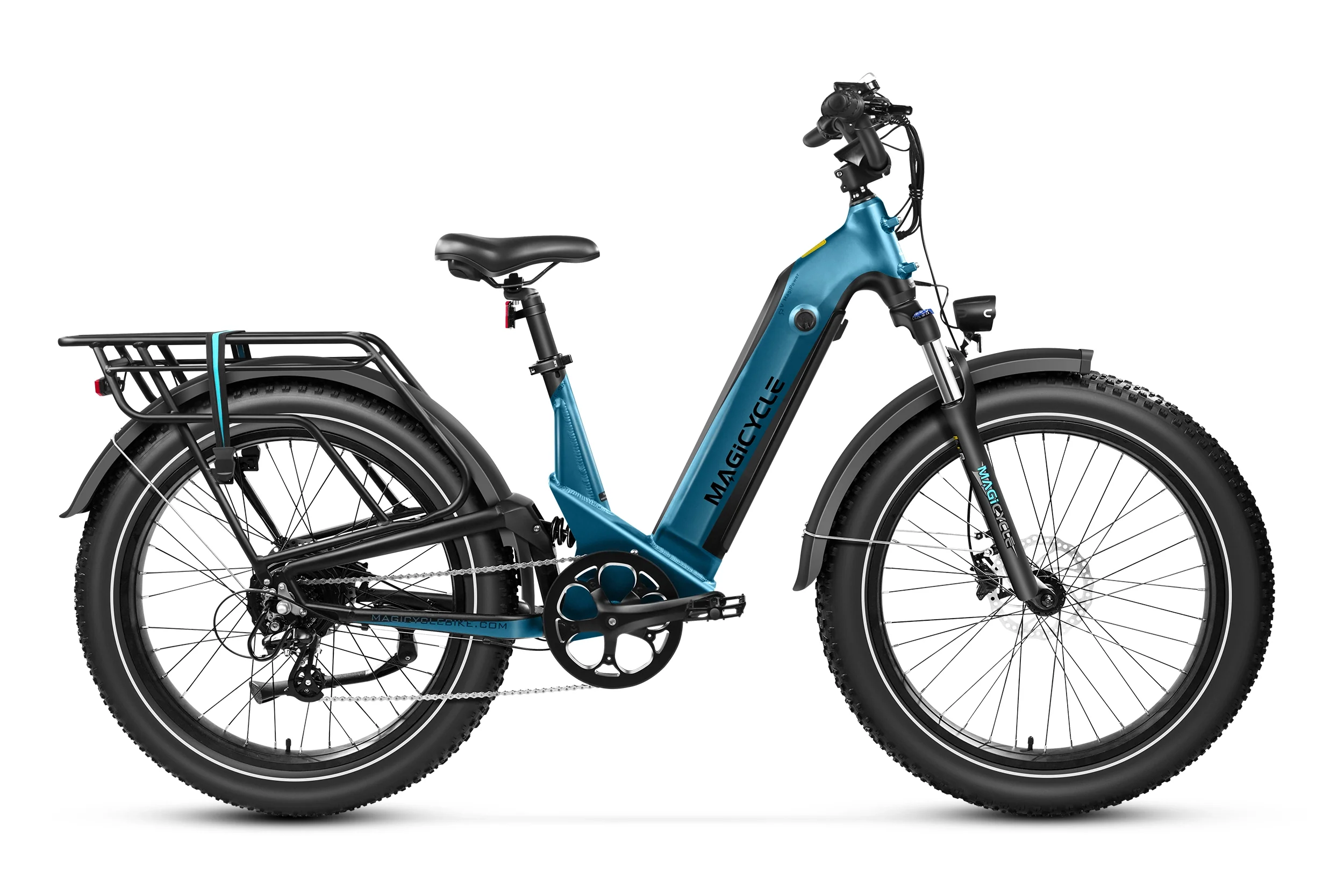

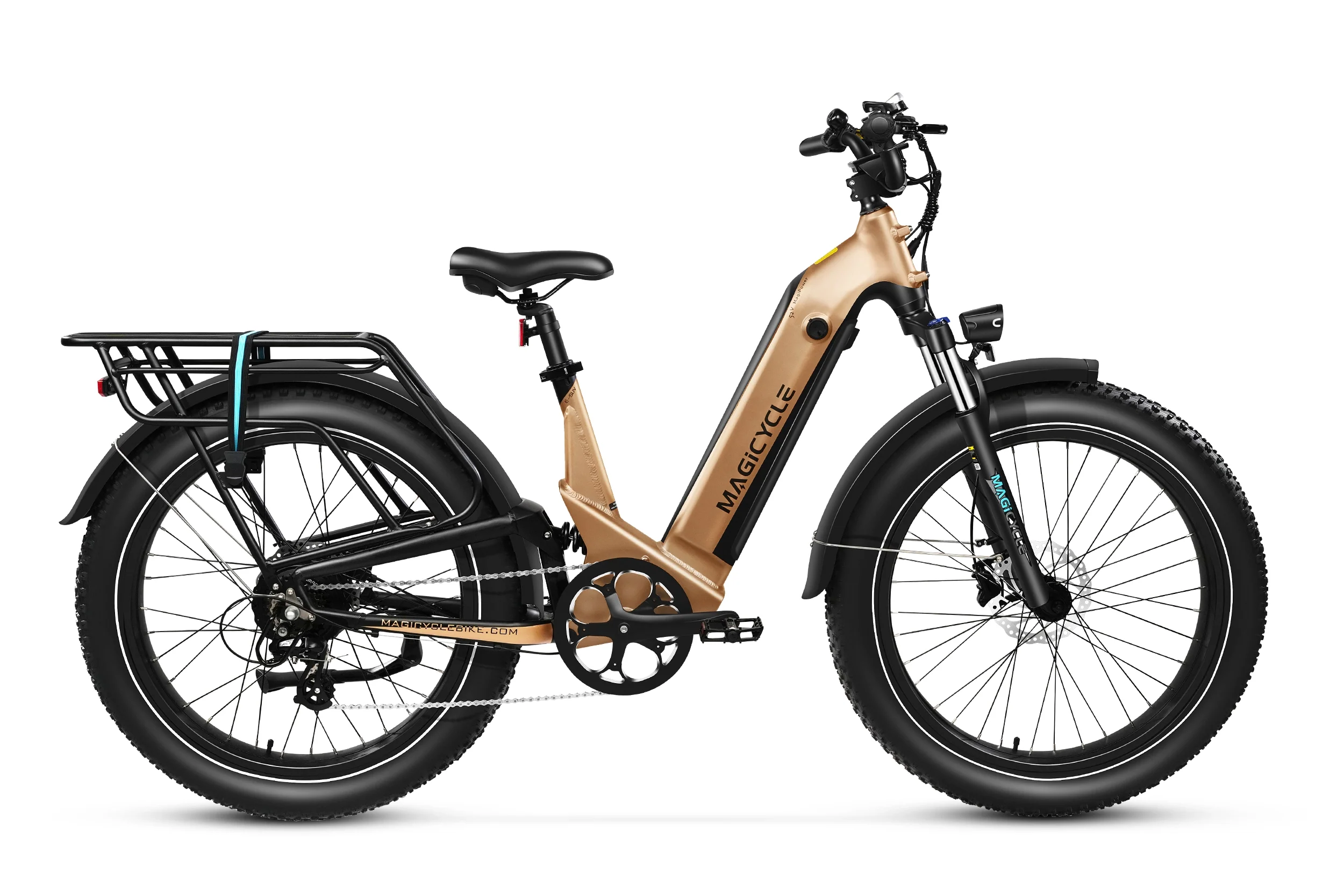

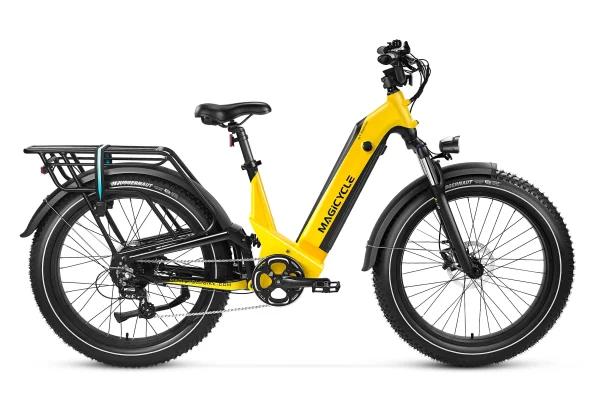

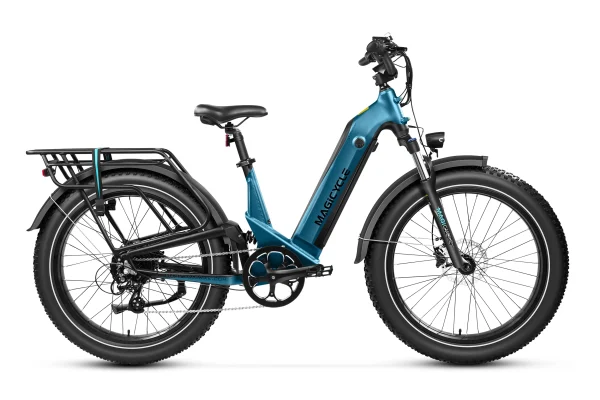

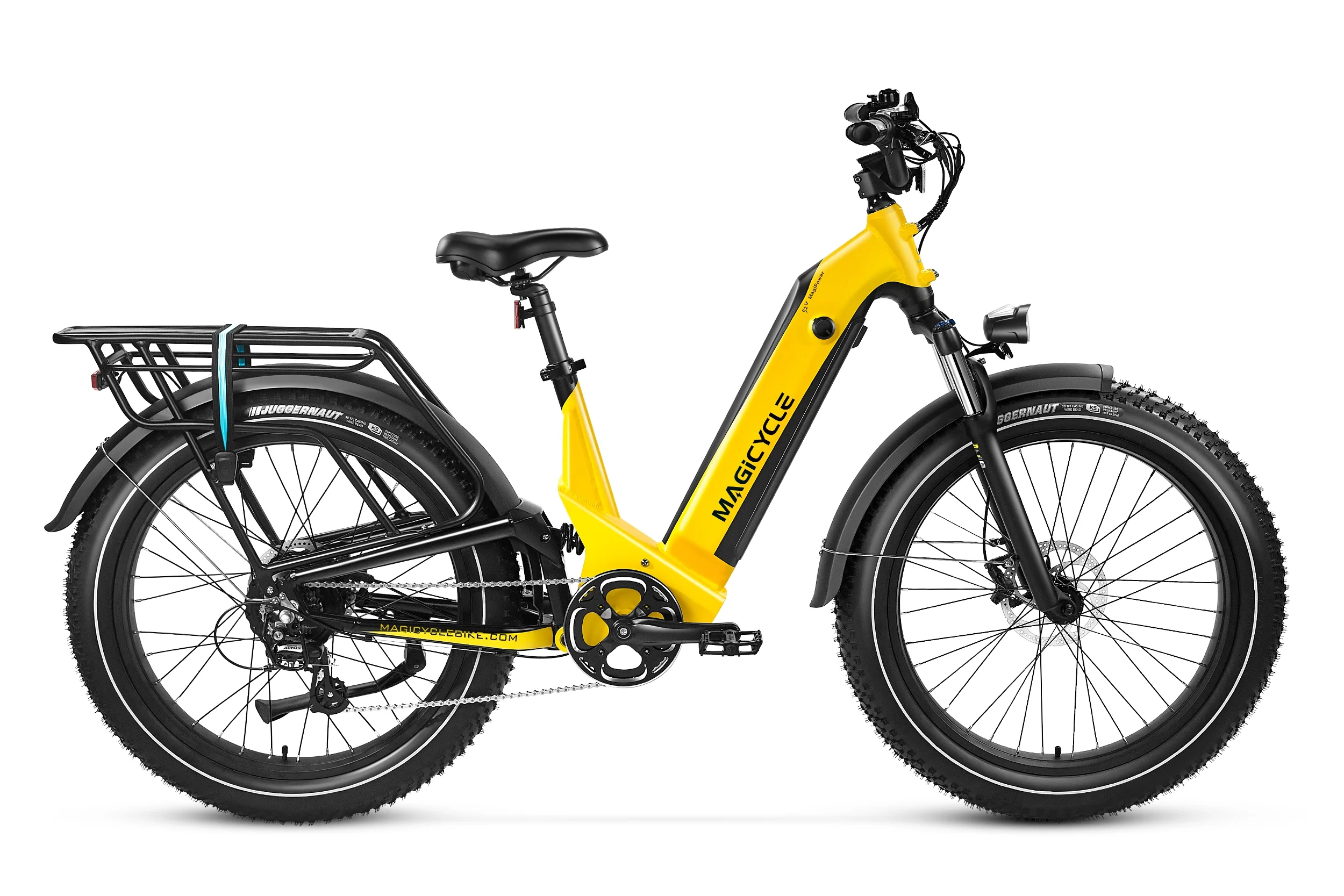

Deer Step Thru Full Suspension Ebike 750w 28mph

Personalized Speed Adjustment

• Power Levels: Adjustable from 0-7 to suit different riding conditions.
• Speed Ratio Customization: Set each level from 1% to 100% for tailored acceleration.
• Class 3(Ebikes can go up to 28mph with pedal assistance)

Note: Higher percentages may lead to vigorous acceleration; ensure balanced riding during swift starts.

Charging Time

• 4 – 7 Hours: Quick and efficient charging.

Range

• 100 Miles: Provides extensive travel on a single charge.

Total Payload Capacity

• Max: 450 lbs: Supports heavy loads and additional cargo.

Frame Size

• 18″: Versatile size suitable for a range of rider heights.

Battery

• 52V 20Ah LG Lithium Battery: High capacity for long rides and reliability.

Charger

• Short-Circuit Proof 3.0A Fast Smart Charger: Safe and efficient charging.

Hub Motor

• 750W/1500W (Peak) 100Nm Brushless Gear Motor (IP55): Powerful motor with dust and water resistance.

Display

• Color LCD Display with USB Charging: Provides clear visibility and the option to charge devices.

Weight

• Deer 26″: 92.3 lbs (41.9 kg)
• Deer 20″: 83 lbs (37.6 kg)

Recommended Rider Heights

• Deer 26″: 5’5″ – 6’8″
• Deer 20″: 4’10” – 6’2″

Controller

• 52V 750W FOC Smart Controller (IPX8): Efficient and protected against dust and water.

Pedal Assist

• 7-Level Intelligent Pedal Assist with 12-Magnet Cadence Sensor: Provides responsive support and energy efficiency.

Package Dimension

• Deer 26″: 166 cm x 33 cm x 88.5 cm
• Deer 20″: 154 cm x 32 cm x 77.5 cm

Components

• Tires: 26″ x 4.0″ Fat Tires for stability and comfort.
• Front Light: 6V LED Light for visibility.
• Front Fork: Alloy Hydraulic Lockout Suspension Fork for a smoother ride.
• Chain: KMC Chain for durability.
• Brake Lever: Aluminum Alloy Comfort Grip Levers with Motor Cutoff Switch for safety.
• Crank: 53T, 170 mm Forged Alloy with Dual-Sided Bashguard for protection.
• Freewheel: Shimano 14-28T for smooth shifting.
• Kickstand: Heavy Duty Aluminum for stable parking.
• Bike Frame: 18″ 6061 Aluminum Frame for strength and durability.
• Gearing: Shimano 7-Speed Gear Shift System for versatile riding options.
• Brake: 180 mm Hydraulic Disc Brakes for reliable stopping power.
• Spokes: 13 Gauge on the Front / 12 Gauge on the Back for strength.
