Description

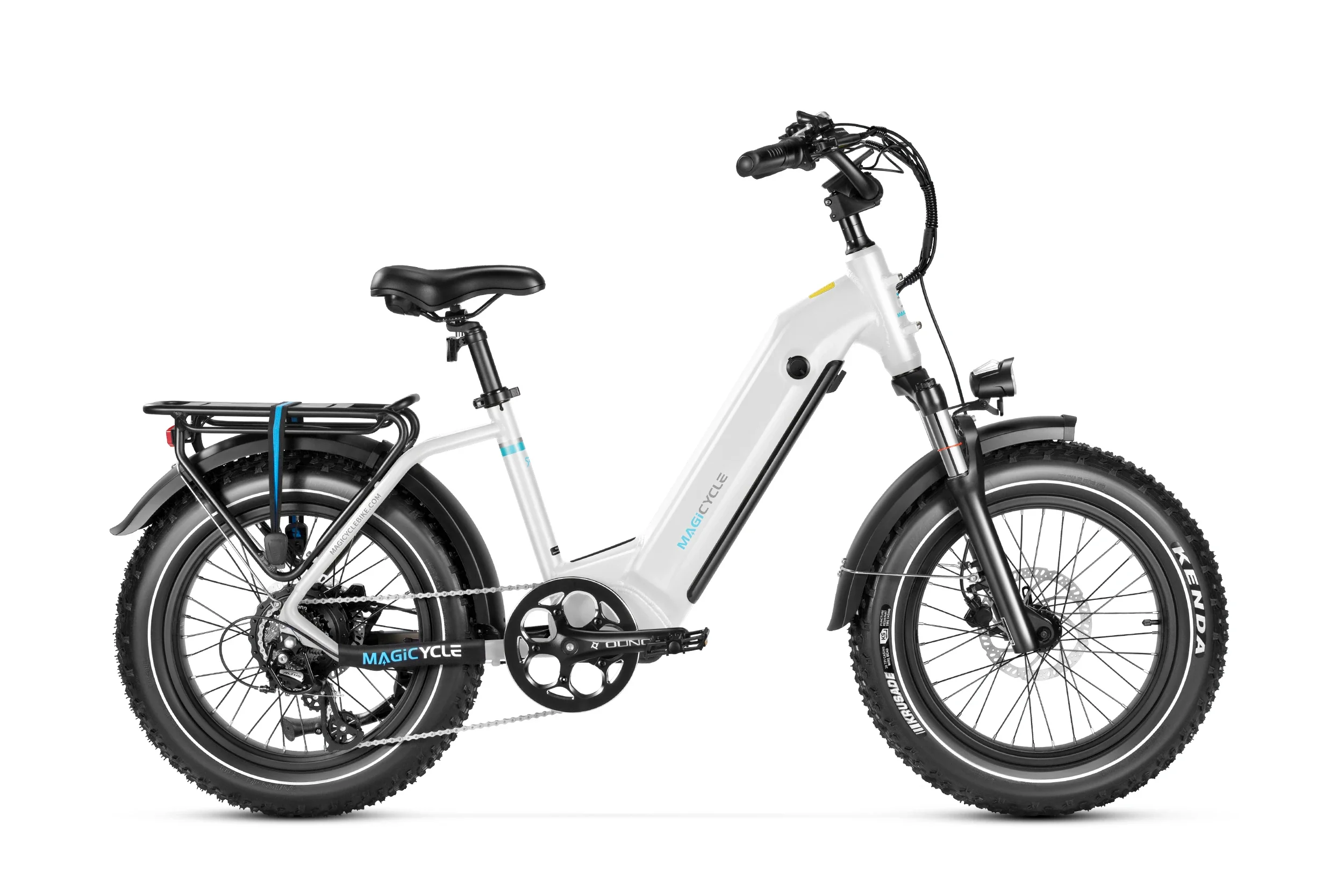

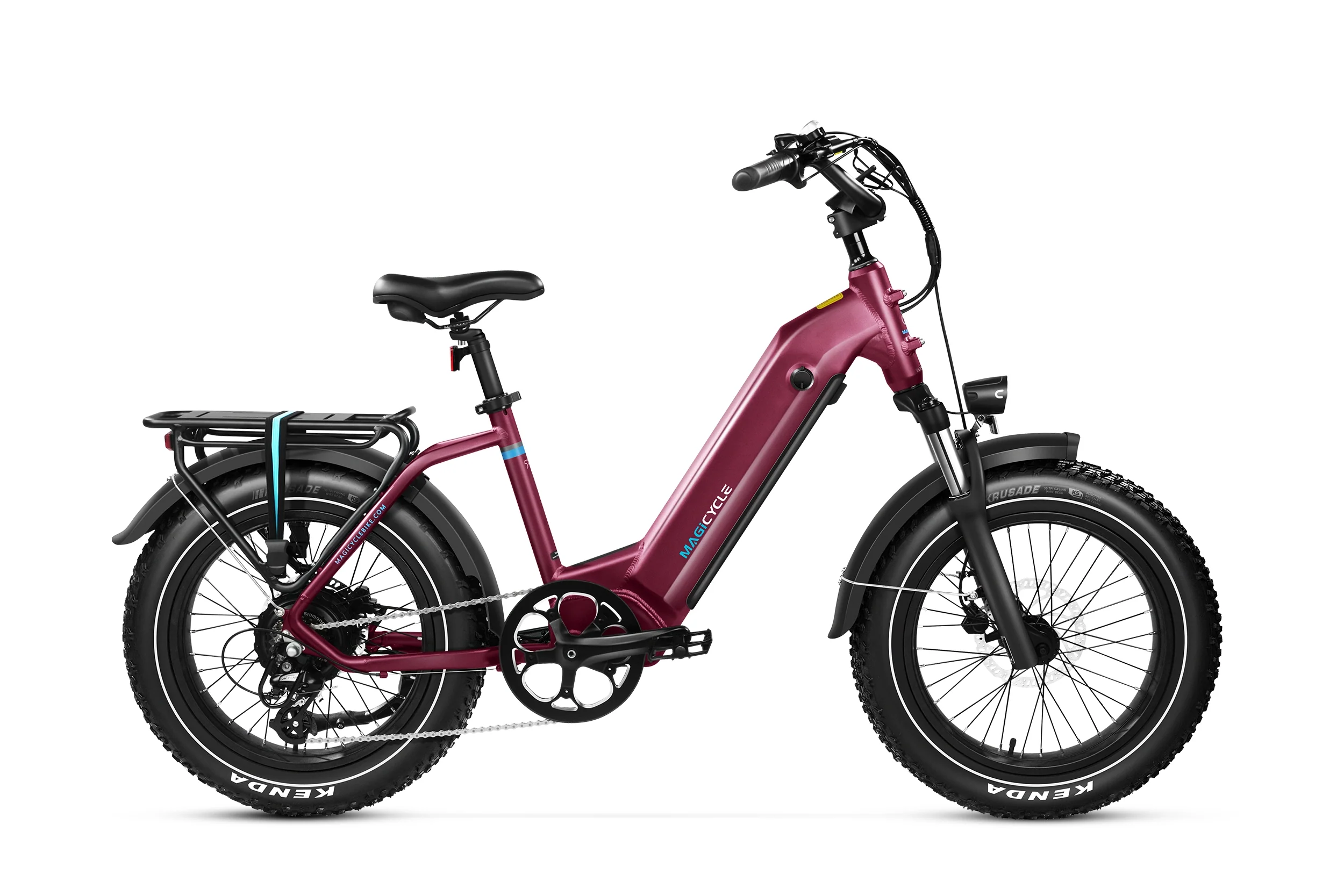

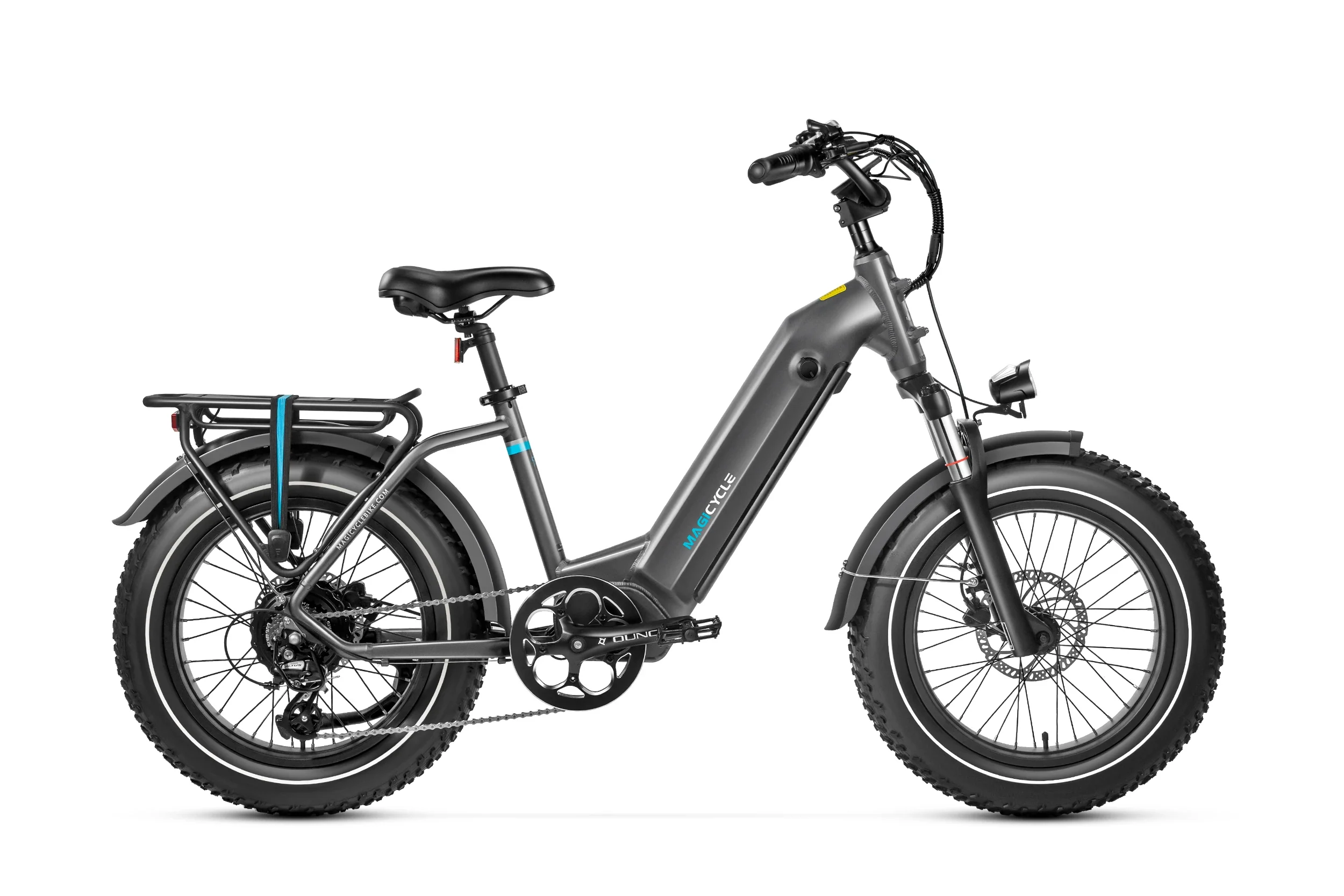

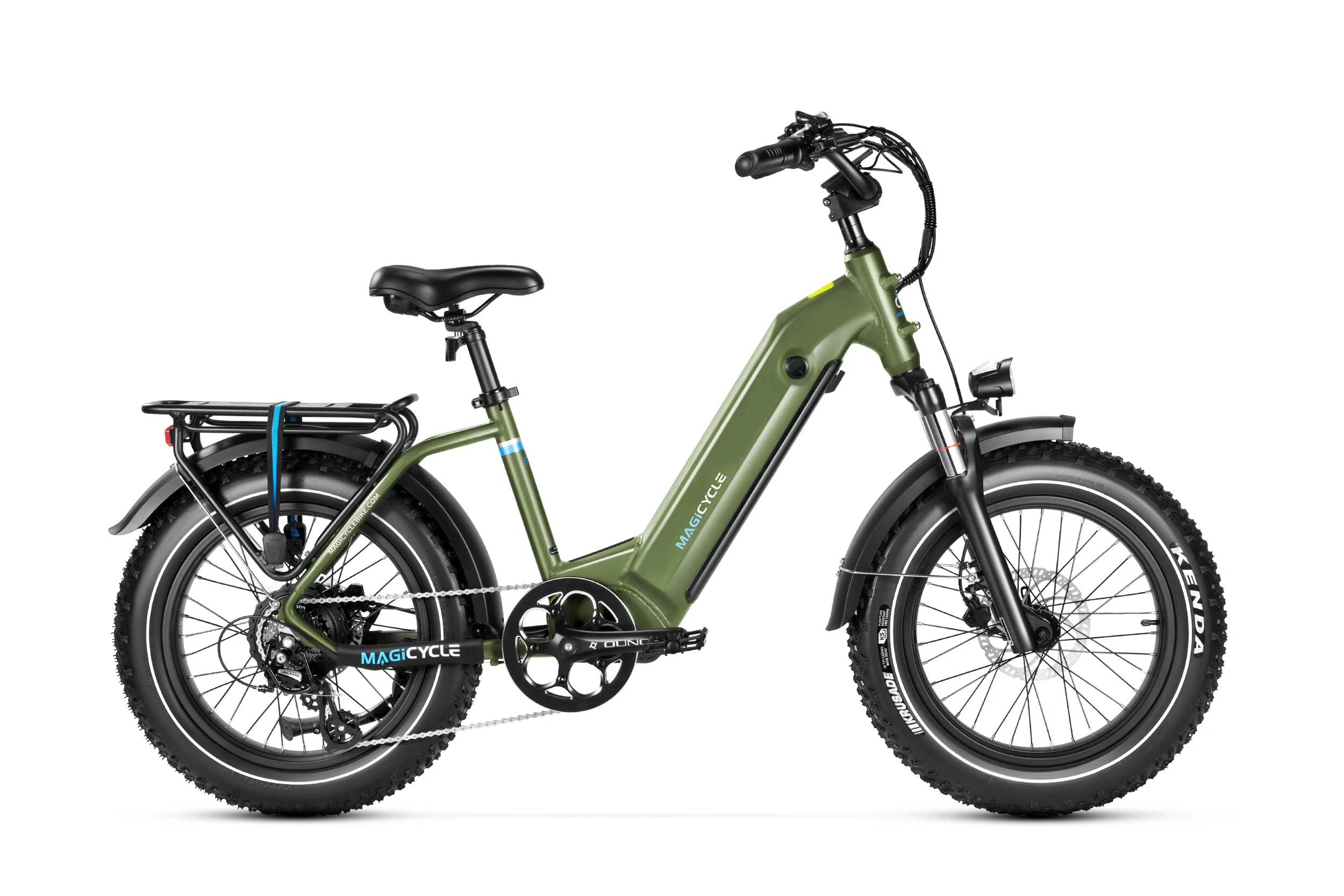

Ocelot Pro Long Range Fat Tire Ebike 750w 28mph

Personalized Speed Adjustment

• Power Levels: Adjust from 0-7 based on your riding needs.
• Speed Ratio Customization: Customize each level from 1% to 100% to match your preferences.

Note: Higher percentages may lead to vigorous acceleration; ensure balanced riding during swift starts.

Battery

• 52V 20Ah LG Lithium Battery: High capacity for longer rides.

Display

• Color LCD Display with USB Charging: Provides clear visibility and allows for charging devices on the go.

Charger

• Short-Circuit Proof 3.0A Fast Smart Charger: Safe and efficient charging.

Charging Time

• 4 to 6 Hours: Quick recharge time.

Range

• 100 Miles: Travel up to 100 miles on a single charge.
• Class 3(Ebikes can go up to 28mph with pedal assistance)

Total Payload Capacity

• Max 450 lbs: High load capacity for carrying additional gear or cargo.

Controller

• 52V 750W FOC Smart Controller (IPX8): Efficient power management with water and dust resistance.

Weight

• 73 lbs (33 kg): Balanced weight for stability and durability.

Hub Motor

• 750W/1500W (Peak) 100Nm Brushless Gear Motor: Powerful motor for strong performance.

Frame Size

• 20″: Suitable for a wide range of rider heights.

Recommended Rider Heights

• 4’10” to 6’2″: Fits various rider sizes comfortably.

Pedal Assist

• Intelligent 7 Levels Pedal Assist with 12-Magnet Cadence Sensor: Provides responsive support and energy efficiency.

Package Dimension

• 61″ x 14″ x 35″: Dimensions for shipping and storage.

Components

• Tires: Kenda 20″ x 4.0″ for stability and comfort.
• Front Light: 6V LED light for visibility.
• Front Fork: Alloy hydraulic lockout suspension fork for a smooth ride.
• Chain: KMC chain for reliability.
• Brake Lever: Aluminum alloy comfort grip levers with motor cutoff switch for safety.
• Crank: 48T, 170 mm forged alloy crank with dual-sided bashguard for protection.
• Freewheel: Shimano 14-28T for smooth gear shifting.
• Kickstand: Heavy duty aluminum for stable parking.
• Bike Frame: 20″ 6061 Aluminum Frame for durability and lightweight design.
• Gearing: Shimano 7-speed gear shift system for versatile riding options.
• Brake: Tektro 180 mm Hydraulic Disc Brakes for reliable stopping power.
• Spokes: 13 gauge on the front and 12 gauge on the back for strength.
